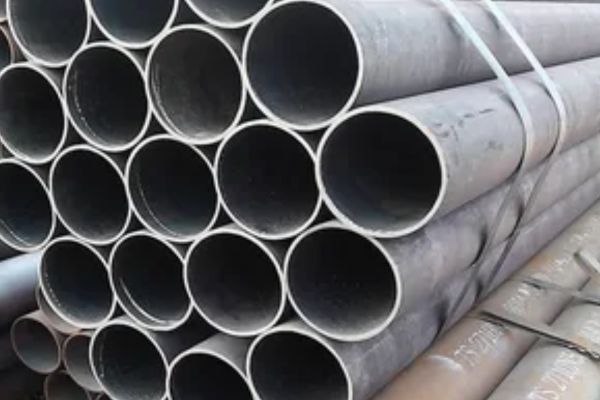

Based in the heart of Safat, Kuwait, Sayed Steel has built a strong reputation as a trusted partner for industry, specializing in high-performance materials. We take pride in our supply of Alloy Steel P92 Pipes, which are engineered to meet the most challenging demands. Known for their exceptional strength and reliability, these pipes are a cornerstone for projects where failure is not an option, ensuring durability and performance that you can count on from a local supplier you know and trust.
| Standard | ASTM A335 P92, SA335 P92 (with IBR Test Certificate) |
| Type | Seamless / ERW / Welded / Fabricated |
| Thickness | 3-12mm |
| End | Plain End, Beveled End, Treaded |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |

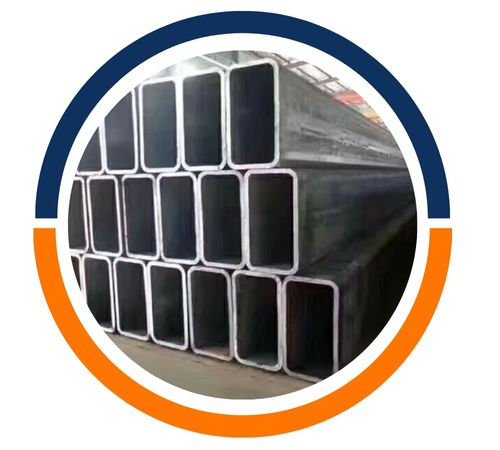

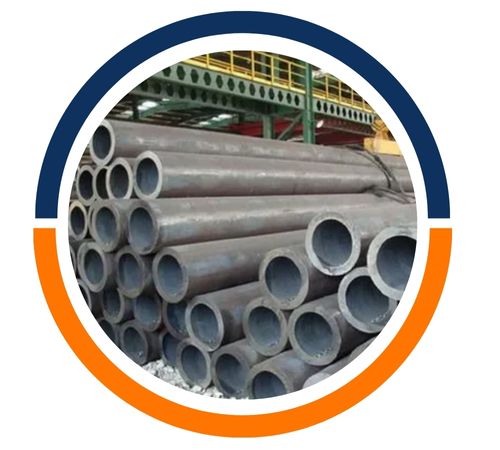

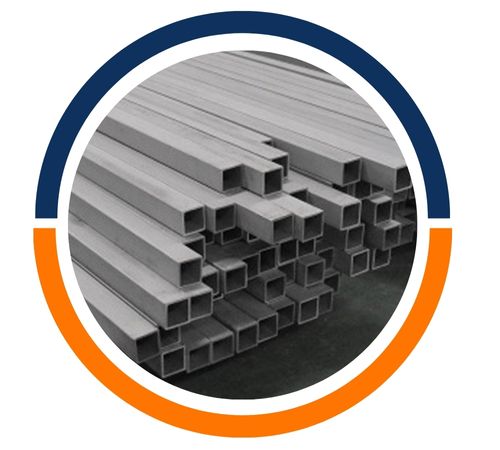

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Length | Standard Double & In Cut length also. |
| Size | 1/2” NB to 36” NB |
| Specialized in | Large Diameter ASTM A335 P92 Pipe |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Grade | UNS | C≤ | Mn | P≤ | S≤ | Si≤ | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| P92 | K92460 | 0.07~0.13 | 0.30~0.60 | 0.020 | 0.010 | 0.50 | 8.50~9.50 | 0.30~0.60 |
Tensile Strength , MPa | ASTM A335 P92 Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|
620 min | 440 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The standout qualities of Alloy Steel P92 stem from its sophisticated composition, which includes chromium, molybdenum, and vanadium, with a carefully controlled addition of tungsten and nitrogen. This specific blend gives the material its remarkable mechanical properties, offering superior creep strength and excellent toughness, even when exposed to the extreme temperatures and high pressures commonly found in critical power generation and industrial settings. This combination ensures long-term structural integrity where it matters most.
| ASTM | ASME | Equivalent material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P92 | SA335 P92 | T92 | K92460 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # | Section Modulus | Gallon Capacity Per Linear Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
| 0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
| 0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
| 0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
| 0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
| 0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
| 0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
| 0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
| 0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
| 0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
| 0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
| 0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
| 0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
| 0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
| 0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
| 0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
| 0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
| 0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
| 0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
| 0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
| 0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
| 0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
| 0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
| 0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
| 0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
| 0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
| 0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
| 0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
| 3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
| 0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
| 0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
| 0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
| 0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
| 0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
| 0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
| 0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
| 0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
| 0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
| 0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
| 0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
| 0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
| 0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
| 0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
| 4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
| 0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
| 0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
| 0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
| 0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
| 0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
| 0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
| 0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
| 0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
| 0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
| 0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
| 0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
| 0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
| 5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
| 0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
| 0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
| 0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
| 0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
| 0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
| 0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
| 0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
| 0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | |||
| 0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
| 6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
| 0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
| 0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
| 0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
| 0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
| 0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
| 0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
| 0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
| 0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
| 0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
| 0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
| 0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
| 0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
| 0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
| 0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
| 0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
| 0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
| 1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
| 1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
You’ll typically find Alloy Steel P92 Pipes hard at work in the most demanding environments. They are essential in the construction of supercritical and ultra-supercritical power plants, forming key sections of main steam lines and hot reheat systems. Their resilience also makes them ideal for high-temperature piping in petrochemical refineries and in various industrial heaters and boilers. Essentially, wherever there is a need to safely contain immense heat and pressure over the long term, P92 is the material of choice for engineers.
