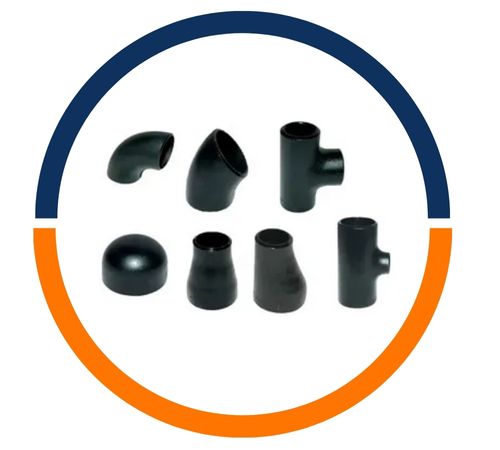

As a leading manufacturer and supplier in Safat, Sayed Steel stands as a reliable partner for industrial needs. We take pride in supplying high-quality Carbon Steel A234 WPB Pipe Fittings, trusted for their strength and durability. Our commitment is to ensure your projects are supported by components that meet the most demanding specifications, reinforcing structures and systems across Kuwait and beyond. When integrity matters, professionals turn to Sayed Steel.
The composition of these carbon steel fittings includes a balanced mix of carbon, manganese, and other trace elements, which gives them excellent mechanical properties. They are designed to handle high-pressure environments and resist deformation. This specific grade offers good tensile strength and yield strength, making these fittings a dependable choice for creating robust and long-lasting pipe connections.
| Specification | ASTM A234 / ASME SA234 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/2″ NB to 24″NB in. |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Surface Treatment | Rust-proof black oil or hot galvanized, Transparent oil |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| Tensile Requirements | WPB | WPC |
| Tensile Strength, min, ksi[MPa] | 60-85 [415-585] | 70-95 [485-655] |
| Yield Strength, min, ksi[MPa] | 32 [240] | 40 [275] |
| Pipe | Fittings | Flanges | Valves | Bolts & Nuts |
| A106 Gr B | A234 Gr WPB | A105 | A216 Gr WCB | A193 Gr B7 A194 Gr 2H |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Minimal Pipe Size | O.D. | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | LR | SR | LR | LR | ||||
| (Millimetre) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radii (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Sayed Steel is a top manufacturer and supplier of high-quality Carbon Steel A234 WPB Pipe Fittings products in Safat, Kuwait. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel A234 WPB fittings are the backbone of many industrial piping systems, particularly where high temperatures are a factor. You will find them connecting critical lines in chemical plants, oil refineries, water treatment facilities, and power generation units. Their primary job is to join pipes for seamless flow, making them indispensable in systems that transport water, oil, gas, and steam under significant pressure and heat.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
