Carbon Steel DIN 17121 Pipe Manufacturer and Supplier in Safat, Kuwait

Carbon Steel DIN 17121 Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Based in the industrial heart of Safat, Sayed Steel has built a reputation for reliability, supplying high-grade materials for Kuwait’s growing infrastructure. We are proud to offer the Carbon Steel DIN 17121 Pipe, a product synonymous with durability and consistent performance. This pipe is engineered to meet stringent German standards, making it a trusted choice for engineers and project managers who require materials that can withstand demanding conditions and ensure the longevity of their critical applications.

CS DIN 17121 Pipes Exporter in Kuwait, Carbon Steel DIN 17121 Pipe Price List in Safat, Carbon Steel DIN 17121 Pipes Supplier in Jahra, Carbon Steel DIN 17121 Pipe Exporter in Hawalli, Carbon Steel DIN 17121 Pipes Exporter in Al Ahmadi, CS DIN 17121 Pipes Size Chart, Carbon Steel DIN 17121 Pipe Price in Salmiya, Carbon Steel DIN 17121 Pipes Weight Chart, CS DIN 17121 Pipes Thickness, Carbon Steel DIN 17121 Pipe Supplier in Kuwait, Carbon Steel DIN 17121 Pipes Stockist in Jahra

Carbon Steel DIN 17121 Seamless Pipes

Carbon Steel DIN 17121 Welded Pipes

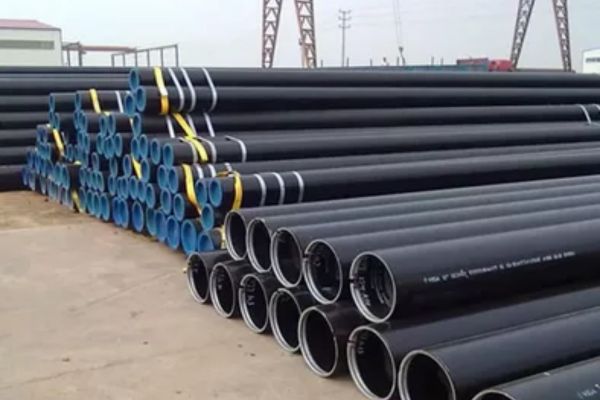

Carbon Steel DIN 17121 EFW Pipes

What is Carbon Steel DIN 17121 Pipe?

The composition of this carbon steel pipe is carefully balanced, primarily iron with precise additions of carbon, manganese, and silicon, which creates a material with excellent structural integrity. This specific formulation gives the pipe its notable mechanical properties, including high tensile strength and good yield strength, allowing it to handle significant pressure and load-bearing tasks. It also offers commendable elongation, providing a degree of flexibility that helps it resist deformation under stress.

Carbon Steel DIN 17121 Pipe Exporter in Kuwait, Carbon Steel DIN 17121 Pipe Price List in Safat, CS DIN 17121 Pipes Supplier in Jahra, Carbon Steel DIN 17121 Pipes Exporter in Hawalli, Carbon Steel DIN 17121 Pipe Exporter in Al Ahmadi, Carbon Steel DIN 17121 Pipe Size Chart, Carbon Steel DIN 17121 Pipes Price in Salmiya, Carbon Steel DIN 17121 Pipe Weight Chart, Carbon Steel DIN 17121 Pipe Thickness, CS DIN 17121 Pipes Supplier in Kuwait, Carbon Steel DIN 17121 Pipes Stockist in Jahra

Carbon Steel DIN 17121 Pipe Specifications

Product Type	EN-10025-2 Grade ST52-3 square Tube
Specification	OD1515mm-400400mm
OD	3030 – 600600 mm
Wall Thickness	0.5 – 20 mm
Standard	API, ASTM, BS, DIN, GB, JIS
Steel material	Q195. Q215, Q235, Q345
Size length	15mm-400mm, WT: 0.313mm
Surface Treatment	Bared, Black Painted (varnish coating), Galvanized, With Oiled, 3 PE, FBE, corrosion resistant coating

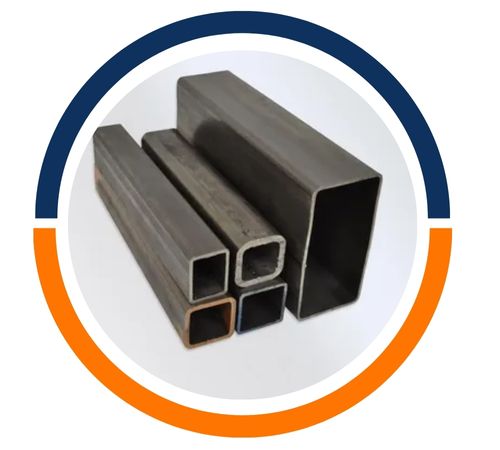

Section Shape	Square and rectangular

Carbon Steel DIN 17121 Pipe Chemical Composition

C	Si	Mn	P	S	N	Cu	CEV
max 0.24	max 0.55	max 1.6	max 0.04	max 0.04	max 0.012	max 0.55	max 0.47

Carbon Steel DIN 17121 Pipe Mechanical Properties

Minimum yield strength Reh MPa						Tensile strength Rm MPa		*Minimum elongation – A Lo = 5,65 √So (%)**				Notch impact test
Steel grade	Nominal thickness mm						Nominal thickness mm		Nominal thickness mm				Temperature	Min. absorbed energy
	≤16	>16 ≤40	>40 ≤63	>63 ≤80	>80 ≤100	>100 ≤125	>3 ≤100	>100 ≤125	>3 ≤40	>40 ≤63	>63 ≤100	>100 ≤125	°C	J
ST52-3	355	345	335	325	315	295	470-630	450-600	22	21	20	18	-20

Carbon Steel DIN 17121 Pipes Mechanical Properties

Size NPS	O.D.	Wall Thickness	Pipe I.D.	Weight per Foot	Standard to XXHY	Schedule Pipe #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel DIN 17121 Pipe in Safat, Kuwait

Jaxon Steel is a leading manufacturer and supplier of high-quality Carbon Steel DIN 17121 Pipe products in Safat, Kuwait. Specializing in steel solutions, we offer a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive product lineup includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and exceptional customer service, we are committed to providing top-grade steel materials that ensure durability and performance in various industrial applications. Jaxon Steel is your trusted partner for all your Carbon Steel DIN 17121 Pipe needs.

Carbon Steel DIN 17121 Pipe Dimensions Chart

NB	O.D.	Size	40S	5S	10S	S10	S20	S60	S40	S80	XS/80S	S120	S100	S160	S140	XXS
	13.72	1/4			1.7				2.24	3.02
	17.15	3/8			1.7				2.31	3.2
20	26.67	3/4	2.9	1.7	2.1				2.87	3.91	3.91			5.56		7.82
25	33.4	1	3.4	1.7	2.8				3.38	4.55	4.55			6.35		9.09
32	42.16	1 1/4	3.6	1.7	2.8				3.56	4.85	4.85			6.35		9.7
40	48.26	1 1/2	3.7	1.7	2.8				3.68	5.08	5.08			7.14		10.2
50	60.33	2	3.9	1.7	2.8				3.91	5.54	5.54			9.74		11.1
65	73.03	2 1/2	5.2	2.1	3.1				5.16	7.01	7.01			9.53		14
90	101.6	3 1/2	5.7	2.1	3.1				5.74	8.08	8.08
100	114.3	4	6	2.1	3.1				6.02	8.56	8.56	11.1		13.5		17.1
150	168.3	6	7.1	2.8	3.4				7.11	11	10.97	14.3		18.3		22
300	323.9	12	9.5	4	4.6		6.4	14.3	10.3	17.5	12.7	25.4	21.4	33.3	28.6	25.4
350	355.6	14	9.5	4	4.8	6.4	7.9	15.1	11.1	19.1	12.7	27.8	23.8	35.7	31.8
450	457.2	18	9.5	4.2	4.8	6.4	7.9	19.1	14.3	23.8	12.7	34.9	29.4	45.2	39.7
500	508	20	9.5	4.8	5.5	6.4	9.5	20.6	15.1	26.2	12.7	38.1	32.5	50	44.5
600	609.6	24	9.5	5.5	6.4	6.4	9.5	24.6	17.5	31	12.7	46	38.9	59.5	52.4
650	660.4	26	9.5			7.9	13				12.7
750	762	30	9.5	6.4	7.9	7.9	13				12.7
800	812.8	32	9.5			7.9	13		17.5		12.7
900	914.4	36	9.5			7.9	13		19.1		12.7

Carbon Steel DIN 17121 Pipe Supplier in Safat, Carbon Steel DIN 17121 Pipes Exporter in Jahra, CS DIN 17121 Pipes Sizes in mm, Carbon Steel DIN 17121 Pipes Manufacturer in Hawalli, Carbon Steel DIN 17121 Pipes Price List in Kuwait, CS DIN 17121 Pipes Distributor in Al Ahmadi, Carbon Steel DIN 17121 Pipes in Salmiya, Carbon Steel DIN 17121 Pipe Supplier in Hawalli, Carbon Steel DIN 17121 Pipe Distributor in Kuwait

Types of Carbon Steel DIN 17121 Pipe

Carbon Steel DIN 17121 Pipe Supplier in Safat, CS DIN 17121 Pipes Exporter in Jahra, Carbon Steel DIN 17121 Pipe Manufacturer in Hawalli, Carbon Steel DIN 17121 Pipes Price List in Kuwait, Carbon Steel DIN 17121 Pipe Distributor in Al Ahmadi, Carbon Steel DIN 17121 Pipe in Salmiya, CS DIN 17121 Pipes Supplier in Hawalli, Carbon Steel DIN 17121 Pipes Distributor in Kuwait, Carbon Steel DIN 17121 Pipe Sizes in mm

Uses of Carbon Steel DIN 17121 Pipe

You’ll find the Carbon Steel DIN 17121 Pipe playing a vital role in a wide array of essential systems. It’s commonly used for constructing pipelines that transport water, oil, and gas, as well as in the fabrication of structural components for buildings and industrial plants. Its reliability also makes it suitable for mechanical engineering projects, boiler construction, and various low-pressure applications. Essentially, wherever there’s a need for a robust and dependable conveyance or support system, this pipe delivers proven performance.
