Carbon Steel DIN 2440 Pipe Manufacturer and Supplier in Safat, Kuwait

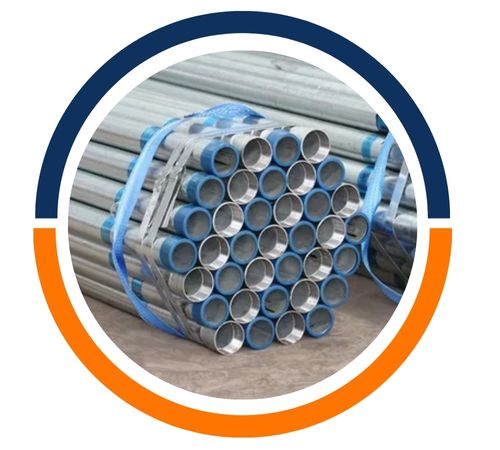

Carbon Steel DIN 2440 Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Sayed Steel, your trusted partner in Safat, Kuwait, is proud to supply industry-leading Carbon Steel DIN 2440 Pipe, a cornerstone for robust and reliable fluid transport systems. We understand that the integrity of your projects depends on the quality of your materials, which is why we ensure our seamless pipes meet the exacting German DIN standards. From our facility to your worksite, you can count on us for consistent quality and dependable delivery, making us a go-to source for contractors and engineers across the region who demand excellence.

CS DIN 2440 Pipes Exporter in Kuwait, Carbon Steel DIN 2440 Pipe Price List in Safat, Carbon Steel DIN 2440 Pipes Supplier in Jahra, Carbon Steel DIN 2440 Pipe Exporter in Hawalli, Carbon Steel DIN 2440 Pipes Exporter in Al Ahmadi, CS DIN 2440 Pipes Size Chart, Carbon Steel DIN 2440 Pipe Price in Salmiya, Carbon Steel DIN 2440 Pipes Weight Chart, CS DIN 2440 Pipes Thickness, Carbon Steel DIN 2440 Pipe Supplier in Kuwait, Carbon Steel DIN 2440 Pipes Stockist in Jahra

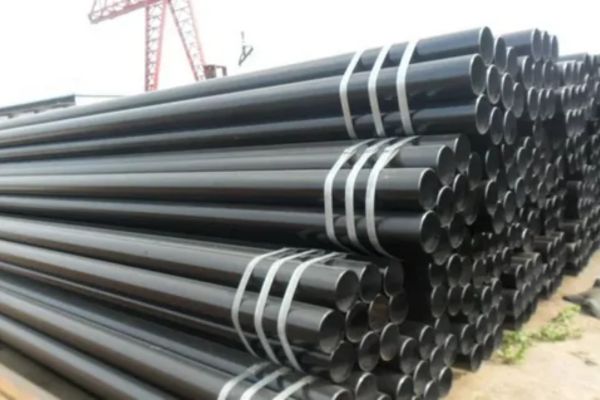

Carbon Steel DIN 2440 Seamless Pipes

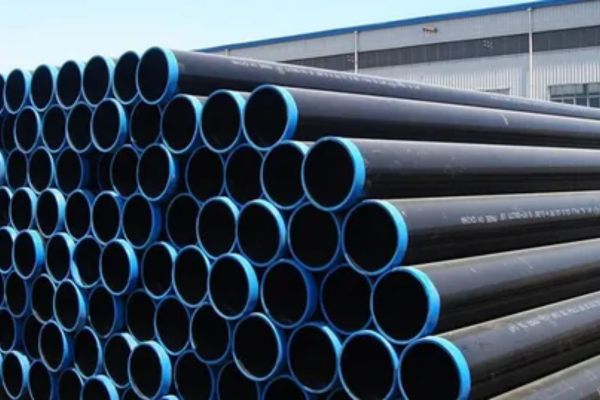

Carbon Steel DIN 2440 Welded Pipes

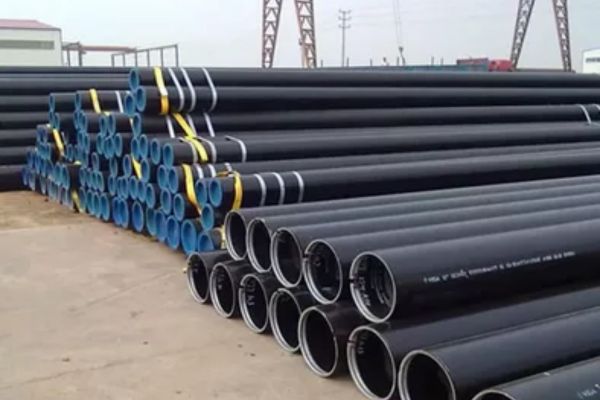

Carbon Steel DIN 2440 EFW Pipes

What is Carbon Steel DIN 2440 Pipe?

The composition of this carbon steel pipe is carefully balanced, primarily iron with controlled amounts of carbon, manganese, and other elements, to deliver a perfect blend of strength and workability. This specific formulation results in outstanding mechanical properties, including high tensile strength and excellent resistance to internal pressure, making it incredibly durable. It’s this reliable toughness that allows these pipes to perform consistently under demanding conditions, providing a long-lasting solution for a wide array of industrial applications.

Carbon Steel DIN 2440 Pipe Exporter in Kuwait, Carbon Steel DIN 2440 Pipe Price List in Safat, CS DIN 2440 Pipes Supplier in Jahra, Carbon Steel DIN 2440 Pipes Exporter in Hawalli, Carbon Steel DIN 2440 Pipe Exporter in Al Ahmadi, Carbon Steel DIN 2440 Pipe Size Chart, Carbon Steel DIN 2440 Pipes Price in Salmiya, Carbon Steel DIN 2440 Pipe Weight Chart, Carbon Steel DIN 2440 Pipe Thickness, CS DIN 2440 Pipes Supplier in Kuwait, Carbon Steel DIN 2440 Pipes Stockist in Jahra

Carbon Steel DIN 2440 Pipe Chemical Composition

Steel Grade	C	Si	Mn	Cr	Ni	Mo
St 33	It is not normalized

Carbon Steel DIN 2440 Pipe Mechanical Properties

Steel Grade	Tensile Strength,N/mm2(min)	Yield Strength,N/mm2(min)	Elongation, % (min)
St 33.2	290 – 310	185	18

DIN 2440 Steel Pipes Sizes

DIN 2440
	DN	Zoll	d	s	kg/m
					schwarz	verzinkt
	8	1/4	13.5	2.35	0.65	0.68
	10	3/8	17.2	2.35	0.85	0.89
	15	1/2	21.3	2.65	1.22	1.27
	20	3/4	26.9	2.65	1.58	1.65
	25	1	33.7	3.25	2.44	2.55
	32	1 1/4	42.4	3.25	3.14	3.28
	40	1 1/2	48.3	3.25	3.61	3.77
	50	2	60.3	3.65	5.10	5.33
	65	21/2	76.1	3.65	6.51	6.80
	80	3	88.9	4.05	8.47	8.85
	100	4	114.3	4.5	12.10	12.64

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel DIN 2440 Pipe in Safat, Kuwait

Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel DIN 2440 Pipe products in Safat, Kuwait. Specializing in premium steel materials, we offer an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse selection includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a commitment to dependable delivery and exceptional customer service, Jaxon Steel ensures the supply of superior materials that provide outstanding performance across various industrial applications. Trust Jaxon Steel for all your Carbon Steel DIN 2440 Pipe requirements.

Dimension Standard of DIN 2440 Pipes

Nominall Width>	Conn- ecting nomin- al width of the flttings according to DIN 2950 and DIN 2980	Whit- worth- pipe threads according to DIN 2999 Part1	Tube				Screw thread					Corresponding socket according to DIN 2986
			Outside diameterd1	Wall thick- nesss	Weight		Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	Distance of screw thread dlameter d2 from tube end		Outside diameter	Length
			Outside diameterd1	Wall thick- nesss	Plain-end tube kg/m	socketed tubekg/m	Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	a max.	a min.	min.	min.
6	1/8	R 1/8	10.2	2.0	0.407	0.410	9.728	28	7.4	4.9	3.1	14	17
8	1/4	R 1/4	13.5	2.35	0.650	0.654	13.157	19	11.0	7.3	4.7	15.4	25
10	3/8	R 3/8	17.2	2.65	0.852	0.858	16.662	19	11.4	7.7	5.1	21.3	26
15	1/2	R 1/2	21.3	2.65	1.22	1.23	20.955	14	15.0	10.0	6.4	26.4	34
20	3/4	R 3/5	26.9	2.65	1.58	1.59	26.441	14	16.3	11.3	7.7	31.8	36
25	1	R 1	33.7	3.25	2.44	2.46	33.249	11	19.1	12.7	8.1	39.5	43
32	1 1/4	R 1 1/4	42.4	3.25	3.14	3.17	41.910	11	21.4	15.0	10.4	48.3	48
40	1 1/2	R 1 1/2	48.3	3.25	3.61	3.64	47.803	11	21.4	15.0	10.4	54.5	48
50	2	R 2	60.3	3.65	5.10	5.17	59.614	11	25.7	18.2	13.6	66.3	56
65	2 1/2	R 2 1/2	76.1	3.65	6.51	6.63	75.184	11	30.2	21.0	14.0	82	65
80	3	R 3	88.9	4.05	8.47	8.64	87.884	11	33.3	241	17.1	95	71
100	4	R4	114.3	4.5	12.1	12.4	113.030	11	39.3	28.9	21.9	122	83
125	5	R 5	139.7	4.85	16.2	16.2	138.430	11	43.6	32.1	25.1	147	92
150	6	R 6	165.1	4.85	19.2	19.8	163.830	11	43.6	32.1	25.1	174	92
1) Referred to an average length of 6m

Carbon Steel DIN 2440 Pipe Supplier in Safat, Carbon Steel DIN 2440 Pipes Exporter in Jahra, CS DIN 2440 Pipes Sizes in mm, Carbon Steel DIN 2440 Pipes Manufacturer in Hawalli, Carbon Steel DIN 2440 Pipes Price List in Kuwait, CS DIN 2440 Pipes Distributor in Al Ahmadi, Carbon Steel DIN 2440 Pipes in Salmiya, Carbon Steel DIN 2440 Pipe Supplier in Hawalli, Carbon Steel DIN 2440 Pipe Distributor in Kuwait

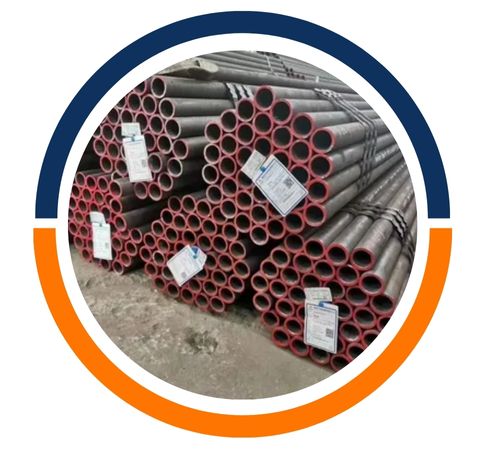

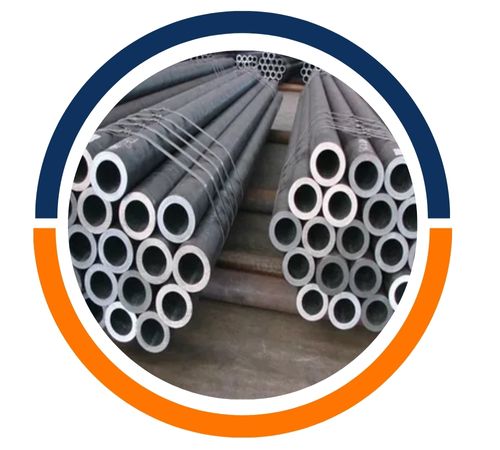

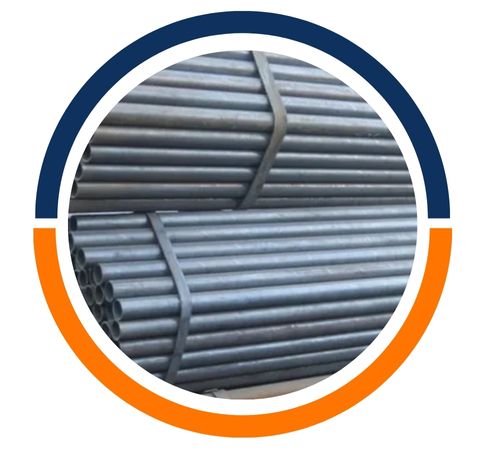

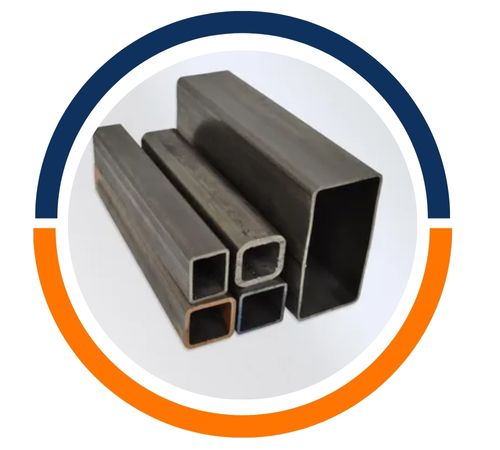

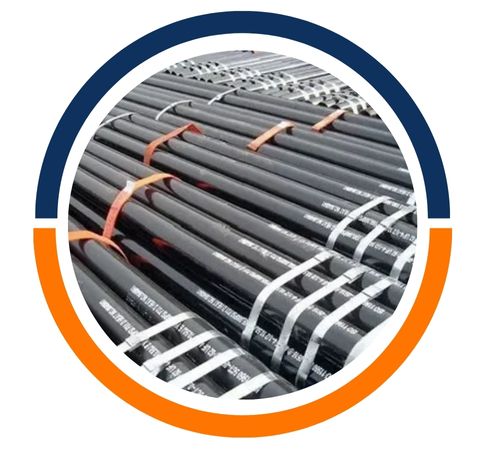

Types of Carbon Steel DIN 2440 Pipe

Carbon Steel DIN 2440 Pipe Supplier in Safat, CS DIN 2440 Pipes Exporter in Jahra, Carbon Steel DIN 2440 Pipe Manufacturer in Hawalli, Carbon Steel DIN 2440 Pipes Price List in Kuwait, Carbon Steel DIN 2440 Pipe Distributor in Al Ahmadi, Carbon Steel DIN 2440 Pipe in Salmiya, CS DIN 2440 Pipes Supplier in Hawalli, Carbon Steel DIN 2440 Pipes Distributor in Kuwait, Carbon Steel DIN 2440 Pipe Sizes in mm

Uses of Carbon Steel DIN 2440 Pipe

The versatility of Carbon Steel DIN 2440 Pipe makes it indispensable across numerous sectors. It’s the preferred choice for constructing high-pressure pipelines for water, oil, and gas, as well as for steam and hydraulic systems. You’ll also find it forming the backbone of structural frameworks, in mechanical engineering applications, and within various industrial plant setups. Its reliable performance under stress ensures the safe and efficient flow of fluids, making it a fundamental component in both large-scale infrastructure projects and everyday industrial operations.
