Sayad Steel stands as a trusted partner for industry in Kuwait, providing reliable materials built for real-world demands. Our Carbon Steel EN 10210-1 Grade S235JRH Pipe is a prime example of this commitment. Sourced to meet rigorous standards, this pipe is designed to form the dependable backbone of structures and systems, offering a perfect balance of strength, weldability, and durability for a wide range of applications, ensuring your projects are built on a foundation of quality and trust.
This particular grade of carbon steel is defined by a well-balanced composition that delivers excellent mechanical properties. It offers a minimum yield strength of 235 MPa, making it robust yet easy to work with. Known for its good weldability and formability, S235JRH is a versatile material that can be easily shaped and joined, while still providing the necessary strength and ductility required for many structural and mechanical applications, all while maintaining consistent performance.
| Property | Specification |
|---|---|
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Type | Seamless, Welded, ERW |
| Length | 6000 – 14000 mm |
| Surface Protection | Black (Self-Colored, Uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Wall Thickness | 0.5 mm – 25 mm |
| Standard | BS EN 10210 – Hot Finished Structural Hollow Sections of Non-Alloy and Fine Grain Steels |

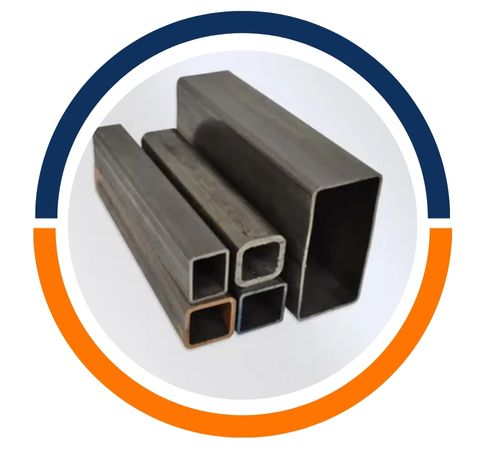

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm – 400 x 400 mm |
| Grade | S235JRH |
| Dimension Range | 21.3 mm – 914 mm |
| Packing | In bundles, Anti-corrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End capped, Certification & supplementary test, Finishing & Identity Mark |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.17 | – | max 1.40 | 0.045 | 0.045 | – | – | – | – | N0.009 |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 340 | 470 | – | 26 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10210-1 Grade S235JRH Pipe in Safat, Kuwait. Specializing in premium steel materials, we offer a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10210-1 Grade S235JRH Pipe needs.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
| Outer diameter and wall Thickness | |||
|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance |
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
You’ll find the S235JRH pipe is incredibly versatile, commonly used in the construction of building frameworks, support columns, and various structural components. Its reliability also makes it ideal for mechanical applications, including towers, vehicle frames, and general fabrication. Essentially, wherever a dependable, cost-effective steel pipe is needed for load-bearing purposes, this grade proves to be an excellent choice, forming the core of both small-scale projects and large industrial infrastructure.
