Sayed Steel, a trusted name in the Safat industrial community, takes pride in supplying high-quality Carbon Steel EN 10216-1 Pipes. This specific grade is engineered for reliability and durability, making it a fundamental component in systems where performance is non-negotiable. We understand that the integrity of your project depends on the quality of its parts, which is why we ensure every pipe meets stringent standards, providing a dependable solution for complex industrial, oil and gas, and construction needs throughout Kuwait and beyond.

Carbon Steel EN10216-1 Pipe Supplier in Safat, CS EN10216-1 Pipe Exporter in Jahra, DIN 1629 CS EN10216-1 Pipe Sizes in mm, EN10216-1 Carbon Steel Pipe Manufacturer in Hawalli, ASTM A106 EN 10216-1 CS Pipe Price List in Kuwait, CS EN10216-1 Pipe Distributor in Al Ahmadi, DIN 2448 EN10216-1 Carbon Steel Pipe in Salmiya, ASTM A106 EN 10216-1 CS Pipe Supplier in Hawalli, DIN 2448 EN10216-1 Carbon Steel Pipe Distributor in Kuwait

Carbon Steel EN 10216-1 Seamless Pipes

Carbon Steel EN 10216-1 Welded Pipes

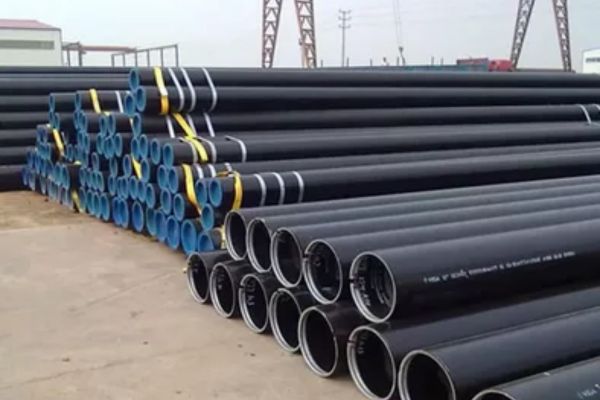

Carbon Steel EN 10216-1 EFW Pipes

What is Carbon Steel EN 10216-1 Pipe?

The composition of this carbon steel pipe is carefully balanced primarily with iron and carbon, alongside elements like manganese to enhance strength. Mechanically, it is defined by its impressive yield strength and tensile strength, which allow it to withstand significant internal pressure. The material also offers good ductility, enabling it to be shaped and formed for various installations. This combination of properties makes it a robust and reliable choice for demanding environments that require a material that can perform under stress.

EN10216-1 Carbon Steel Pipe Exporter in Kuwait, DIN 1629 CS EN10216-1 Pipe Price List in Safat, EN 10216-1 Steel Pipes Supplier in Jahra, ASTM A53 Carbon Steel EN10216-1 Pipe Exporter in Hawalli, Carbon Steel EN10216-1 Pipe Exporter in Al Ahmadi, CS EN10216-1 Pipe Size Chart, ASTM A106 EN 10216-1 CS Pipe Price in Salmiya, DIN 2448 EN10216-1 Carbon Steel Pipe Weight Chart, EN 10216-1 Steel Pipes Thickness, CS EN10216-1 Pipe Supplier in Kuwait,EN 10216-1 Steel Pipes Stockist in Jahra

Carbon Steel EN 10216-1 Pipe Specifications

Standard: DIN2448, DIN1629, DIN17175, EN10255, EN10216
Grade: ST37, ST44, St45, ST52, S355JR
Size: From 1/2″ to 32″
Wall Thickness: 2-60mm
Length: 4M to 12 M

Carbon Steel EN 10216-1 Pipe Chemical Properties

Grade	C	Si	Mn	P	S	Cr	Ni	Cu
St37.0	=0.17	0.17-0.37	0.35-0.65	=0.025	=0.020	=0.25	=0.25	=0.25
St44.0	=0.21	0.17-0.37	0.50-0.80	=0.025	=0.020	=0.25	=0.25	=0.25
St55	0.33-0.41	0.17-0.37	0.50-0.80	=0.025	=0.020	=0.25	=0.25	=0.25
St52.0	=0.22	=0.55	=1.60	=0.025	=0.020	=0.25	=0.25	=0.25

Carbon Steel EN 10216-1 Pipe Mechanical Properties

Pipe types	Steel grades	Upper yield limit Re min for wall thickness in mm min			Tensile strength Rm MPa	Elongation A% min
ROUND SEAMLESS CARBON STEEL PIPES FOR SPECIAL REQUIREMENTS St37.0, St44.0, St52.0 according to DIN 1629	Steel grades	16	16 40	40 65	Tensile strength Rm MPa	1	t
	St37.0	235	225	215	350-480	25	23
	St44.0	275	265	255	420-550	21	19
	St52.0	355	345	335	50-650	21	19

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel EN 10216-1 Pipe in Safat, Kuwait

Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10216-1 Pipe products in Safat, Kuwait. Specializing in premium steel materials, we offer a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to timely delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Rely on Jaxon Steel for all your Carbon Steel EN 10216-1 Pipe requirements.

size chart of EN 10216-1 Pipe

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

Dimensional Tolerances of EN 10216-1 Seamless Pipes

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH 80 S		SCH 80		SCH 100		SCH 120		SCH. 140		SCH.160		SCH.XXS
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	2.41	0.47
8	1/4	13.7	3.02	0.82
10	3/8	17.2	3.2	1.12
15	1/2	21.3	3.73	1.64									4.75	1.97	7.47	2.59
20	3/4	26.7	3.91	2.93									5.54	2.93	7.82	3.69
25	1	33.4	4.55	3.29									6.35	4.3	9.09	5.53
32	11/4	24.2	4.85	4.53									6.35	5.69	9.7	7.88
40	11/2	48.3	5.08	5.49									7.14	7.35	10.16	9.69
50	2	60.3	5.54	7.6									8.71	11.26	11.07	13.65
65	21/2	73	7.01	11.59									9.53	15.15	14.02	20.72
80	3	88.9	7.62	15.51									11.13	21.67	15.24	28.11
90	31/2	101.6	8.08	18.92											16.15	34.56
100	4	114.3	8.56	22.66					11.13	28.75			13.49	34.05	17.12	41.66
125	5	141.3	9.53	31.44					12.7	40.9			15.88	49.87	19.05	58.31
150	6	168.3	10.97	43.21					14.27	55.03			18.24	68.53	21.95	79.1
200	8	219.1	12.7	65.63			15.06	76.93	18.24	91.73	20.62	102.47	23.01	112.97	22.23	108
250	10	273.1	12.7	82.8	15.06	97.27	18.24	116.38	21.41	134.9	25.4	157.51	28.58	174.95	25.4	155.5
300	12	323.9	12.7	98.95	17.45	133.88	21.41	162.14	25.4	189.82	28.58	211.31	33.32	242.4	25.4	189.82
350	14	355.6	12.7	109.04	19.05	160.54	23.8	197.74	27.76	227.88	31.75	257.47	35.71	286.04
400	16	406.4	12.7	125.2	21.41	206.4	26.19	249.34	30.94	290.88	36.53	338.32	40.46	370.74
450	18	457.2	12.7	141.35	23.8	258.29	29.36	314.54	34.93	369.34	39.67	414.74	45.24	466.67
500	2C	508	12.7	157.51	26.19	315.97	32.54	387.41	38.1	448.3	44.45	515.94	49.99	573.31
550	22	558.8	12.7	173.66	28.57	379.7	34.92	457.83	41.27	535.17	47.62	609.3	53.97	682.57
600	24	609.6	12.7	189.82	30.94	448.3	38.89	555.76	46.02	649.44	52.37	730.72	59.51	819.7

ASTM A53 Carbon Steel EN10216-1 Pipe Supplier in Safat, EN 10216-1 Pipe Exporter in Jahra,CS EN10216-1 Pipe Manufacturer in Hawalli, EN 10216-1 Steel Pipes Price List in Kuwait, DIN 1629 CS EN10216-1 Pipe Distributor in Al Ahmadi, EN 10216-1 Pipe in Salmiya, Carbon Steel EN10216-1 Pipe Supplier in Hawalli, DIN 2448 EN10216-1 Carbon Steel Pipe Distributor in Kuwait, ASTM A106 EN 10216-1 CS Pipe Sizes in mm

Types of Carbon Steel EN 10216-1 Pipe

Carbon Steel EN10216-1 Pipe Exporter in Kuwait, EN10216-1 Carbon Steel Pipe Price List in Safat, EN 10216-1 CS Pipe Supplier in Jahra, CS EN10216-1 Pipe Exporter in Hawalli, EN 10216-1 Steel Pipes Exporter in Al Ahmadi, EN 10216-1 Pipe Size Chart, DIN 2448 EN10216-1 Carbon Steel Pipe Price in Salmiya, ASTM A106 EN 10216-1 CS Pipe Weight Chart,CS EN10216-1 Pipe Thickness, ASTM A53 Carbon Steel EN10216-1 Pipe Supplier in Kuwait, EN 10216-1 CS Pipe Stockist in Jahra

Uses of Carbon Steel EN 10216-1 Pipe

Owing to its robust mechanical properties, the Carbon Steel EN 10216-1 Pipe finds extensive use in constructing high-pressure pipelines for the oil and gas industry, both onshore and offshore. It is equally vital in power generation plants for steam lines and in large-scale industrial facilities for process piping systems. You’ll also find it forming the backbone of structural projects and in the chemical sector, where it effectively transports various fluids. In essence, it’s the go-to choice for critical applications where failure is not an option.
