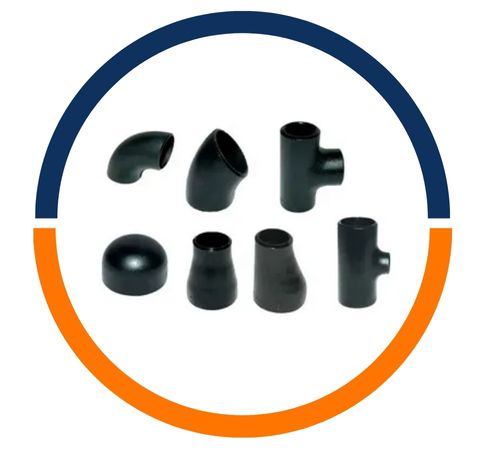

Sayed Steel, a prominent manufacturer and supplier based in Safat, Kuwait, specializes in high-quality **Carbon Steel WPHY 42 Pipe Fittings** designed for exceptional performance in industrial piping systems. Crafted with precision and adhering to international standards, these fittings boast impressive strength, corrosion resistance, and durability, even under high pressure and temperature conditions. Sayed Steel’s WPHY 42 pipe fittings are extensively utilized across the oil and gas, petrochemical, power generation, and construction sectors, ensuring secure and leak-proof connections. With a strong commitment to quality and reliability, Sayed Steel has established itself as a trusted supplier of high-performance carbon steel pipe fittings in Kuwait and beyond.
These Carbon Steel WPHY 42 Pipe Fittings are made from high-strength carbon steel, carefully formulated with specific amounts of carbon, manganese, phosphorus, sulfur, and silicon. They showcase outstanding mechanical properties, including high tensile and yield strength, toughness, and the capability to endure elevated pressures and temperatures. Their unique composition allows for effective welding, forming, and heat treatment, which enhances their durability and service life in demanding industrial settings. The WPHY 42 grade guarantees dependable performance in both onshore and offshore pipeline systems.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | WPHY 42 |
| Dimension | ASME/ ANSI B16.9 | BS10 | ASME B16.28 | BS1560 | BS4504 | MSS-SP-43 |
| Thickness of Fittings | SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75 |
| Types | Seamless | Welded | Fabricated |
| Bending Radius | R= 1D, 8D, 3D, 2D, 6D, 5D, 10D |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Size Ranges | Seamless ButtWeld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Process of Manufacturing | Push, Press, Cast, Forge. |
| Grade | P | Mn | S | Si | Ni | Cr | Mo | Cu | Ti | Cb | V | Al |
| WPHY42 | 1.00-1.45 | 0.20 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.10 | 0.05 | 0.04 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 515-690 | 415 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Sayed Steel is a top manufacturer and supplier of high-quality Carbon Steel A234 WPB Pipe Fittings products in Safat, Kuwait. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find Carbon Steel WPHY 42 Pipe Fittings commonly used in pipeline construction, petrochemical facilities, oil and gas refineries, power plants, and chemical processing units. Typical applications include elbows, tees, reducers, and flanges for pressure piping systems. Their remarkable strength and toughness make them perfect for transporting fluids under high pressure, while their resistance to wear, corrosion, and thermal stress ensures long-lasting reliability. These fittings are essential for maintaining the safety, integrity, and efficiency of industrial piping systems.
