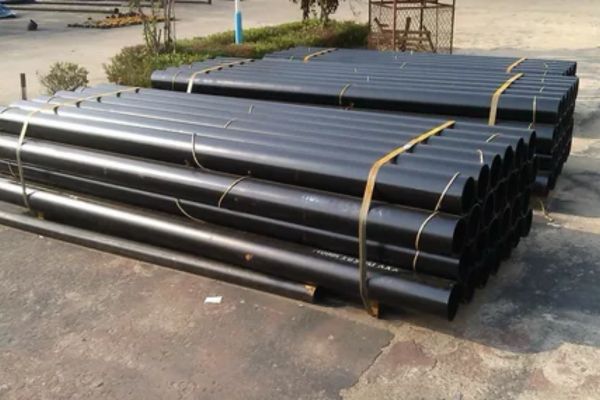

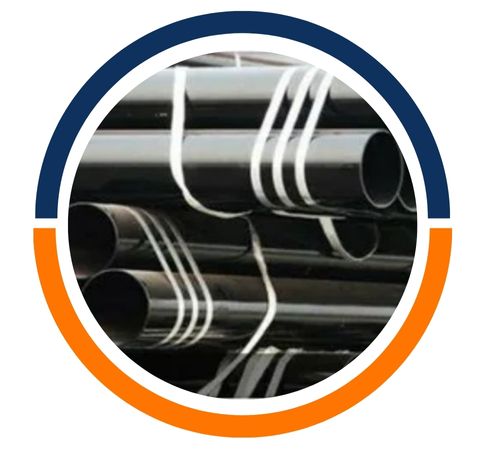

For over [Number] years, Sayed Steel in Safat, Kuwait has been the trusted local source for robust and dependable steel solutions. We take pride in supplying industry with high-quality materials that meet rigorous demands, and our J356 Tubing is a prime example of this commitment. This specific grade is engineered for durability and performance, making it an excellent choice for a wide range of structural and mechanical applications where reliability is paramount.
The strength of J356 Tubing comes from its specific composition and resulting properties. It is a carbon steel known for its excellent balance of strength and formability. With a carefully controlled chemical makeup, it achieves dependable mechanical properties, including good tensile strength and yield point, which allow it to withstand significant pressure and stress without failing, making it a workhorse material for demanding environments.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| CHEMICAL REQUIREMENTS | ||
| Element | Cast or Heat Analysis: Weight % | |
| J356 | J356 Type-A | |
| Carbon | 0.06 Min/0.18 Max | 0.02 Min/0.18 Max |
| Manganese | 0.30 Min/0.60 Max | 0.10 Min/0.60 Max |
| Phosphorus | 0.04 Max | 0.04 Max |
| Sulfur | 0.06 Max | 0.05 Max |
| MECHANICAL PROPERTIES | |
| Properties | Values |
| Yield Strength (Min) | 25,000 PSI |
| Tensile Strength (Min.) | 45,000 PSI |
| Elongation in 2” (Min) | 35% a |
| Hardness (Rockwell B)(Max) | 65 b |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| TUBING WALL THICKNESS TOLERANCES | |||
|---|---|---|---|
| Nominal Wall Thickness (Inches) |
Nominal Tube OD Through 1” (+/- Inches) |
Nominal Tube OD Over 1” Through 2” (+/- Inches) |
Nominal Tube OD Over 2” Through 4” (+/- Inches) |
| .028 (22 Ga) | .002/.003 | .003/.003 | .003/.003 |
| .035 (20 Ga) | .002/.004 | .002/.004 | .002/.004 |
| .042 (19 Ga) | .002/.004 | .002/.004 | .002/.005 |
| .049 (18 Ga) | .004/.005 | .003/.005 | .004/.008 |
| .058 (17 Ga) | .006/.006 | .004/.008 | .004/.008 |
| .065 (16 Ga) | .006/.006 | .004/.008 | .004/.008 |
| .072 (15 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .083 (14 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .095 (13 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .100 | .006/.010 | .006/.010 | .006/.010 |
| .109 (12 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .118 | .006/.010 | .006/.010 | .006/.010 |
| .120 (11 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .134 (10 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .148 (9 Ga) | — | .007/.001 | .007/.011 |
| .156 (5/32) | — | .007/.011 | .007/.011 |
| .165 (8 Ga) | — | .007/.011 | .007/.011 |
| .180 (7 Ga) | — | .007/.011 | .007/.011 |
| .197 | — | .008/0.12 | .008/0.12 |
| .203 (6 Ga) | — | .008/0.12 | .008/0.12 |
| .219 (7/32) | — | .008/.012 | .008/.012 |
| .236 | — | .014/.018 | .014/.018 |
| .238 (4 Ga) | — | .014/.018 | .014/.018 |
| .259 (3 Ga) | — | .014/.020 | .014/.020 |
You’ll find J356 Tubing hard at work across countless industries. Its reliability makes it ideal for constructing frames, roll cages, and supports in manufacturing and automotive applications. It’s also widely used for creating hydraulic cylinders, fluid transport systems, and various machinery components. Essentially, wherever a strong, seamless, and trustworthy tubular component is needed to handle structural loads or contain pressures, J356 Tubing from Sayed Steel delivers the performance you can count on.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
